Stock #:
1453-4911
Catalogue #:
F4PKJ1

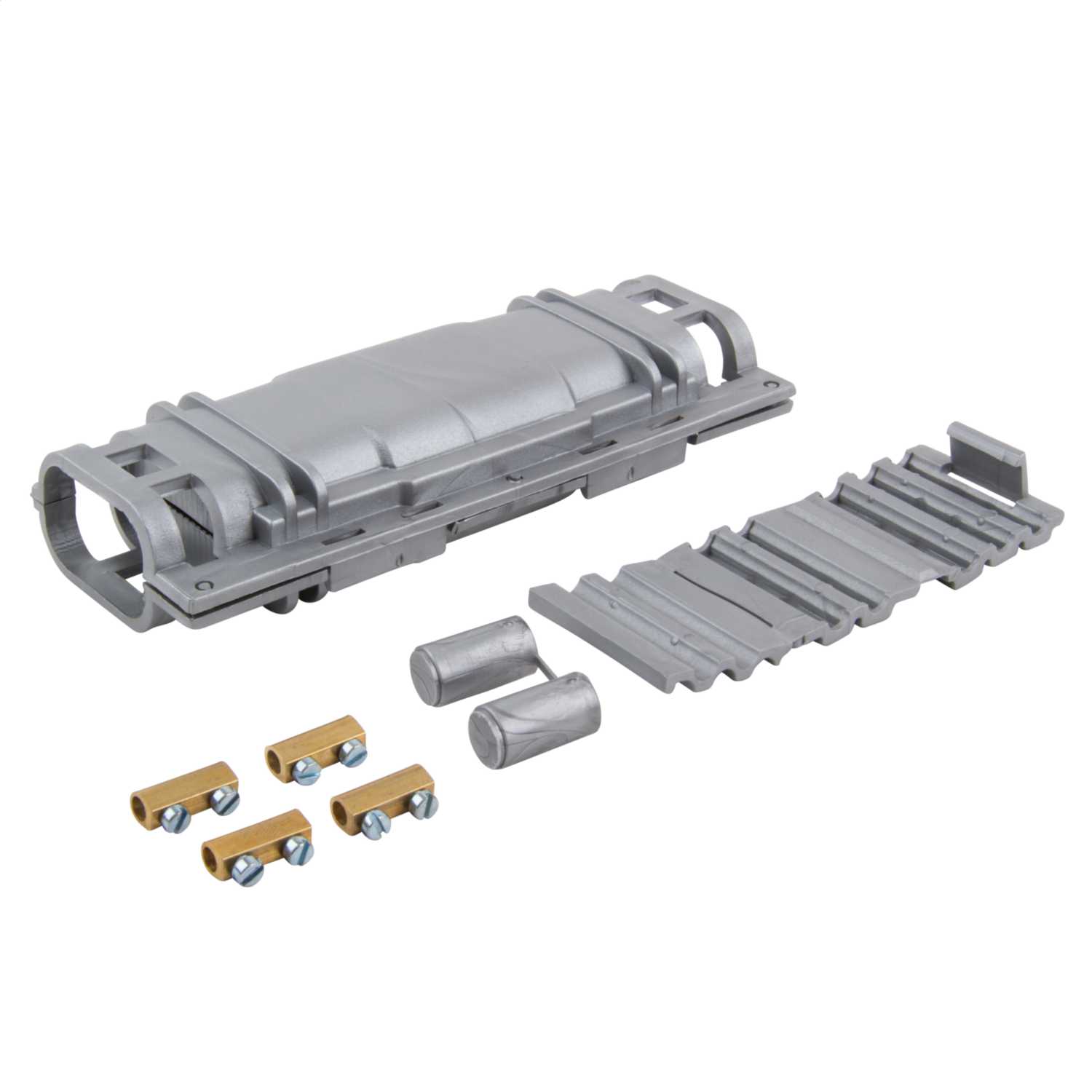

| Equipped with 5 section spacer for proper centering of the 5 core connection. Suitable also for crimped connectors. Re-accessible and with no shelf life. Non-toxic and safe. Flame retardant. For all types of application, including submersible. | |
| Available Options | Alternative Sizes Available |
|---|---|
| Cable Size Range | 1.5 - 6mm² |
| Colour | Grey |
| Depth | 30mm |
| Dimensions | (L)150 mm x (W)56 mm x (D)30 mm |
| Guarantee | 1 Year |
| IP Rating | IP68 |
| Kit Contents | 1 x Gel Joint; 1 x Spacer; 5 x Screw Connectors; 2 x Cable Ties |
| Length | 150mm |
| Logistics Partner | NONE |
| Material | Plastic/UL 94-HB Gel |
| Operating Temperature | 90°C |
| Packaging Types | Pack |
| Product Range | King Joint |
| Similar Stock | No |
| Size | 150 x 56 x 30mm |
| Standards | CEI EN 50393, CEI 20-33 Class 2 (CEI 64-8), CEI 20-35, IEC 60332-1, CENELEC HD 405-1 |
| Suitable For | 5 x 1.5 - 6mm² Cables |
| Unspsc V13 | 39121452 |
| Unspsc V18 | 39121452 |
| Unspsc V22 | 39121452 |
| Unspsc V24 | 39121452 |
| Voltage Rating | 1000V |
| Weight | 0.18kg |
| Width | 56mm |
