Stock #:
2330-3107
Catalogue #:
MB16+C
| Strong transparent shells. Fully waterproof, no resin leakage. Cable spacers included. Complete kit, sealing tape, sandpaper and protective gloves also included. Installation instructions with clear drawings. Quick and easy installation. Connectors and earthing kit included. | |
| Available Options |
Straight and Branch Joints Available Additional Resin Packs Available |
|---|---|
| Cable Size Range | 10 - 16mm² |
| Colour | Transparent |
| Dimensions | (L)335 mm x (W)120 mm |

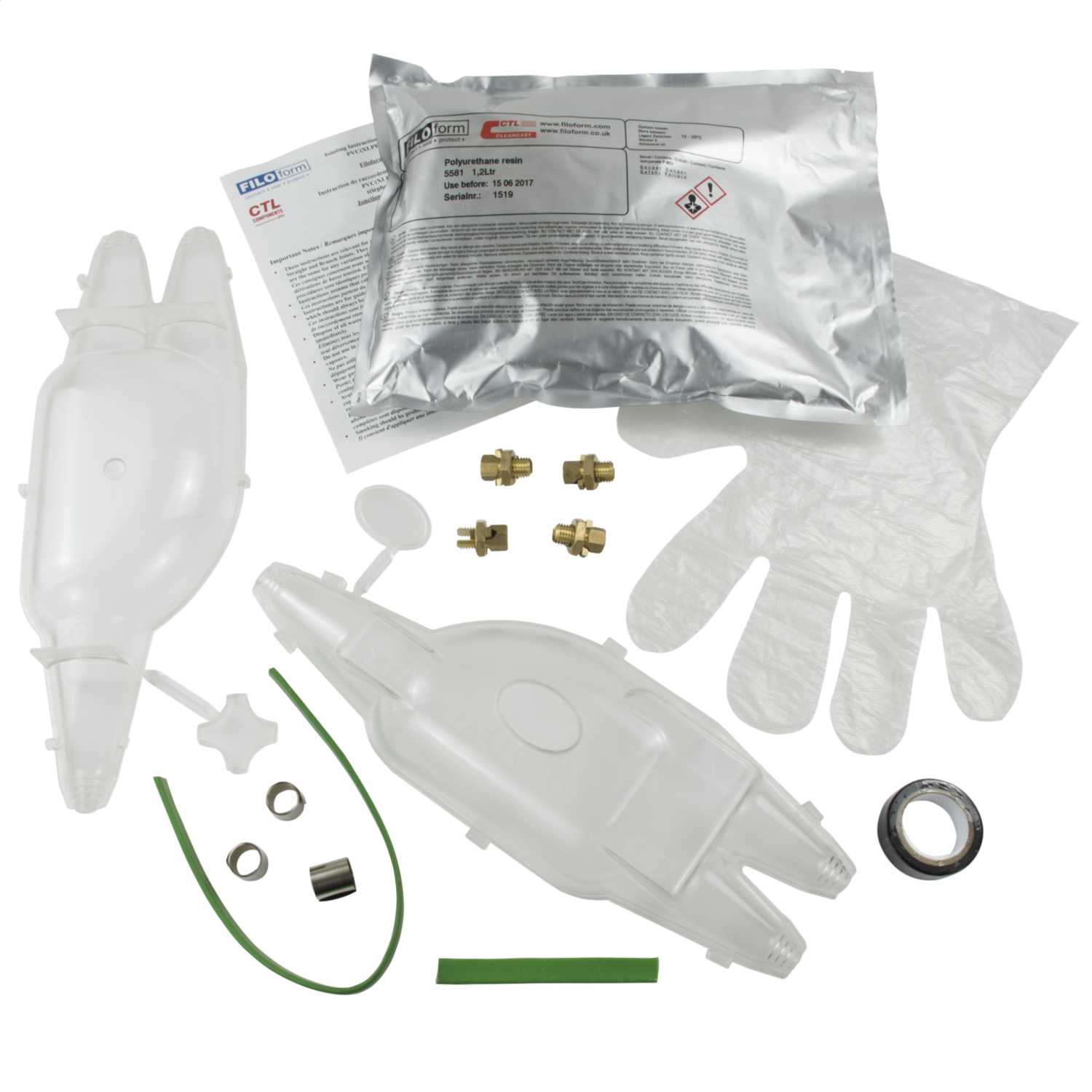

| Kit Contents | Polycarbonate Shell; Resin Pack; Cable Spacers; Mechanical Connectors; Earthing Kit; Sealing Tape; Sandpaper; Protective Gloves |
| Length | 335mm |
| Logistics Partner | NONE |
| Material | Polycarbonate |
| Maximum Cable Diameter | 25mm |
| Packaging Types | Kit |
| Similar Stock | No |
| Standards | IEC 50393-11:2006 |
| Suitable For | 10mm² (3, 4 Core), 16mm² (2, 3, 4 Core) |
| Unspsc V13 | 39121452 |
| Unspsc V18 | 39121452 |
| Unspsc V22 | 39121452 |
| Unspsc V24 | 39121452 |
| Voltage Rating | 1000V |
| Weight | 2.46kg |
| Width | 120mm |
