Stock #:
0137-8588
Catalogue #:
XV45PW

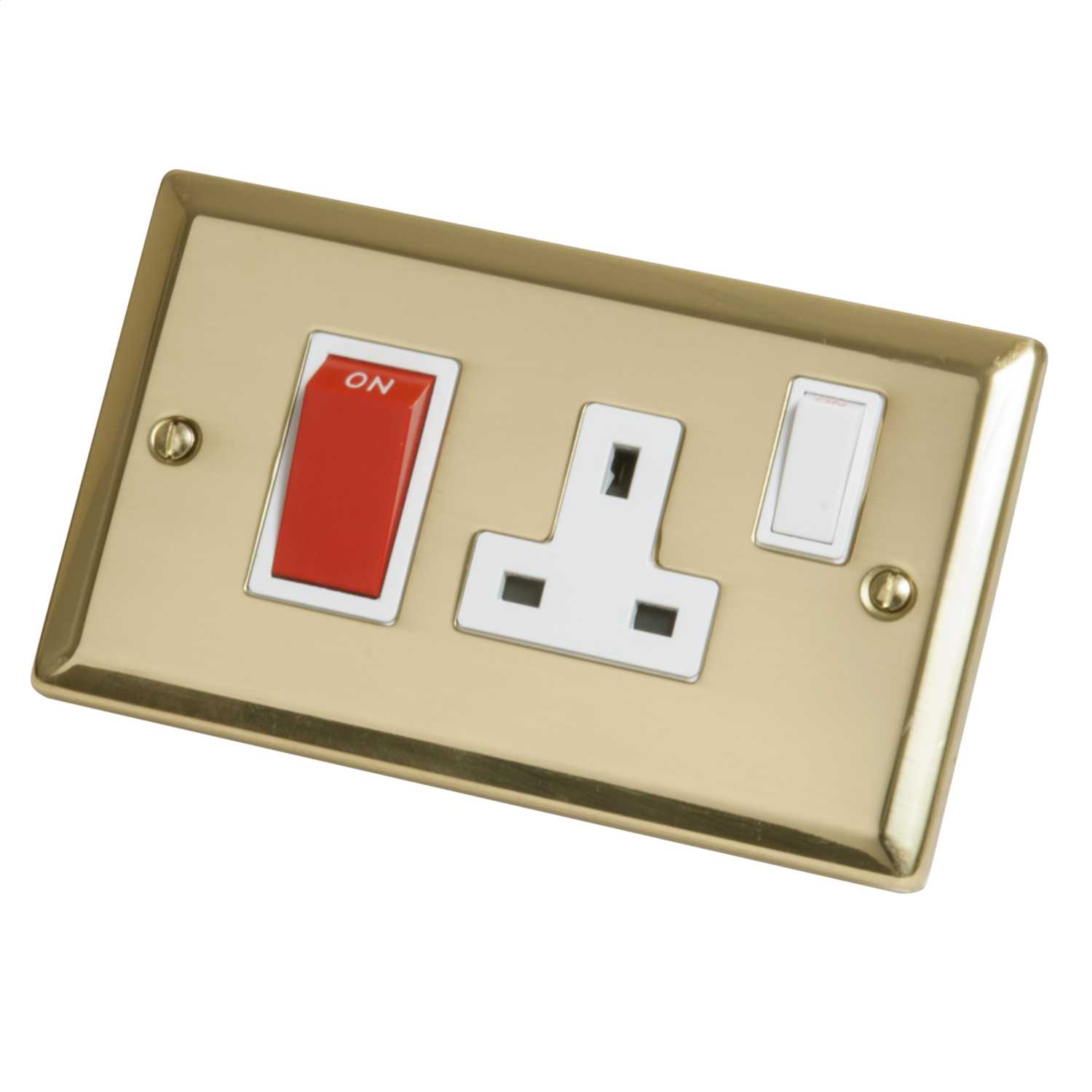

| Faceplate depth: 8mm. Recommended back box depth: 35mm. Maximum load rating: 45A Cooker switch, 13A socket. Intended applications: Domestic power supply. | |
| Available Options | Alternative Finishes Available |
|---|---|
| Colour | Brass |
| Compliance | CE |
| Current Rating | 45A 13A |
| Depth | 35mm |
| Dimensions | (H)91 mm x (W)150 mm x (D)35 mm |
| Finish | Victorian |
| Fixing Centres | 120.6mm |
| Guarantee | 10 Years |
| Height | 91mm |
| Insert Colours | White |
| Logistics Partner | NONE |
| Material | Brass |
| Mounting | Wall |
| Mounting Depth | 35mm |
| Neon | No |
| Number Of Poles | Double Pole |
| Number Of Terminals | 6 |
| Obsolete Iso | 2017-04-21 |
| Packaging Types | Pack |
| Shape | Bevelled Edge |
| Similar Stock | No |
| Standards | BS 4177 |
| Switched Unswitched | Switched |
| Terminal Capacity Earth | 2 x 10mm² |
| Terminal Capacity Live Neutral | 2 x 10mm² |
| Unspsc | 39122200 |
| Unspsc V13 | 39122226 |
| Unspsc V18 | 39122226 |
| Unspsc V22 | 39122226 |
| Voltage Rating | 250V |
| Weight | 0.24kg |
| Width | 150mm |
| With Socket | Yes |
