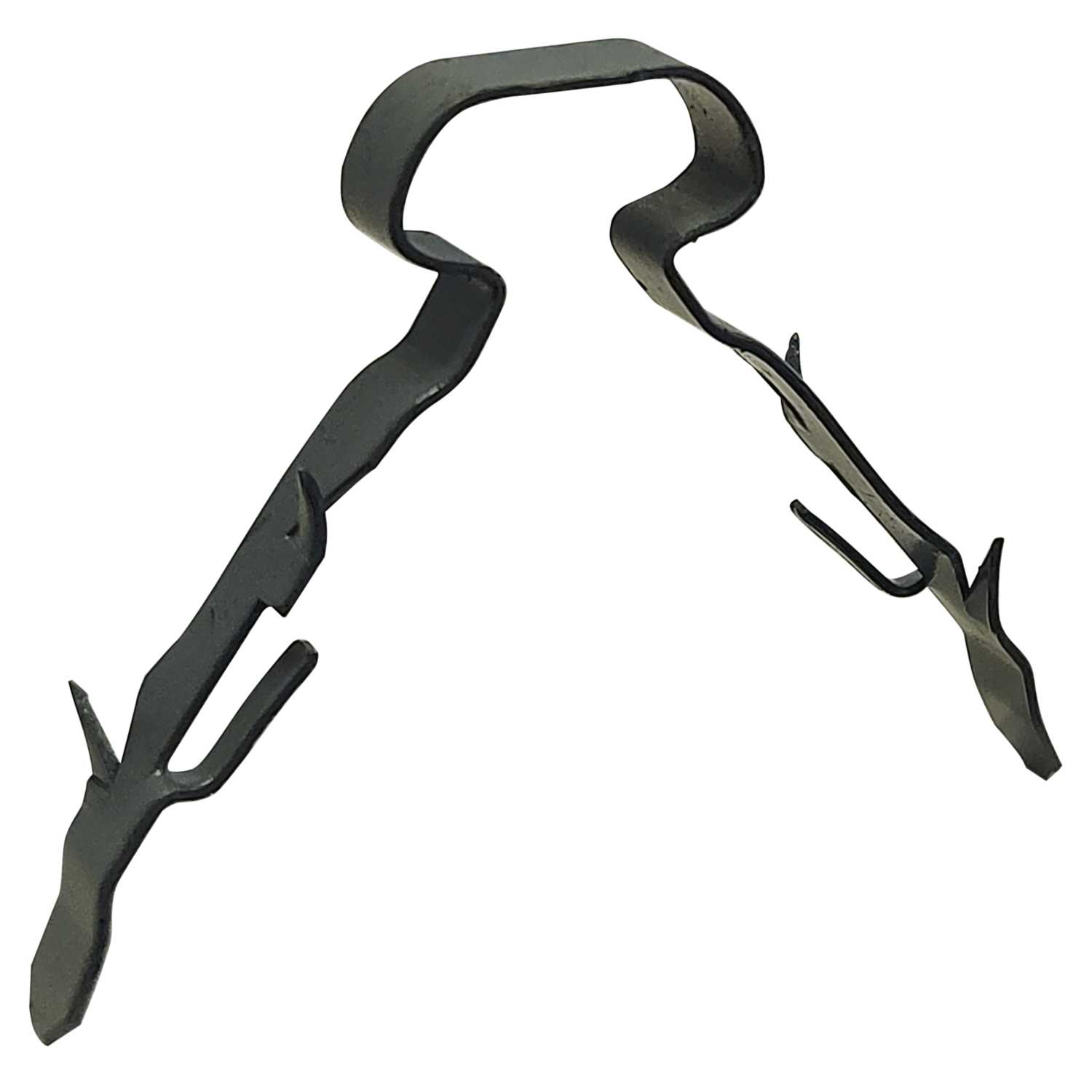

LINIAN 1.5mm IE Twin and Earth Clips Grey (Pack of 100)

Cefco 1lteg0015ie20230109 2556 ub09ft
Linian logo feb2020230109 2556 1vg1xws


Stock #: 2763-9781
Catalogue #: 1LTEG001.5IE

Specification

Compliant with 18th Edition and Fire Rated Cable Fixings [BS 7671]. Fire resistant to 90 and 120 minutes, meeting BSI and DIN classifications. Smoke emission tested to London Underground Standard. Over 1,200°C melting point. Salt spray tested to 1,000 hours. Corrosion resistant and UV stable. Suitable for all substrates. Supports tensile loads of 24kg.
Available Options Available in White
Cable Size 1.5mm²
Colour Grey
Compliance UKCA, CE
Depth 4.5mm
Dimensions (H)32 mm x (W)36 mm x (D)4.5 mm
Height 32mm
Material Steel
Packaging Types Pack
Product Range T&E Clip
Size 10mm x 5mm
Standards BS 7671:Amendment 3, BS 7671:18th Edition 2018, BS EN 50200 PH120, BS 8519:2010, DIN 4102-12 E90
Unspsc 39121702
Unspsc V13 39121702
Unspsc V18 39121702
Unspsc V22 39121702
Width 36mm
