Stock #:
0310-0708
Catalogue #:
S50

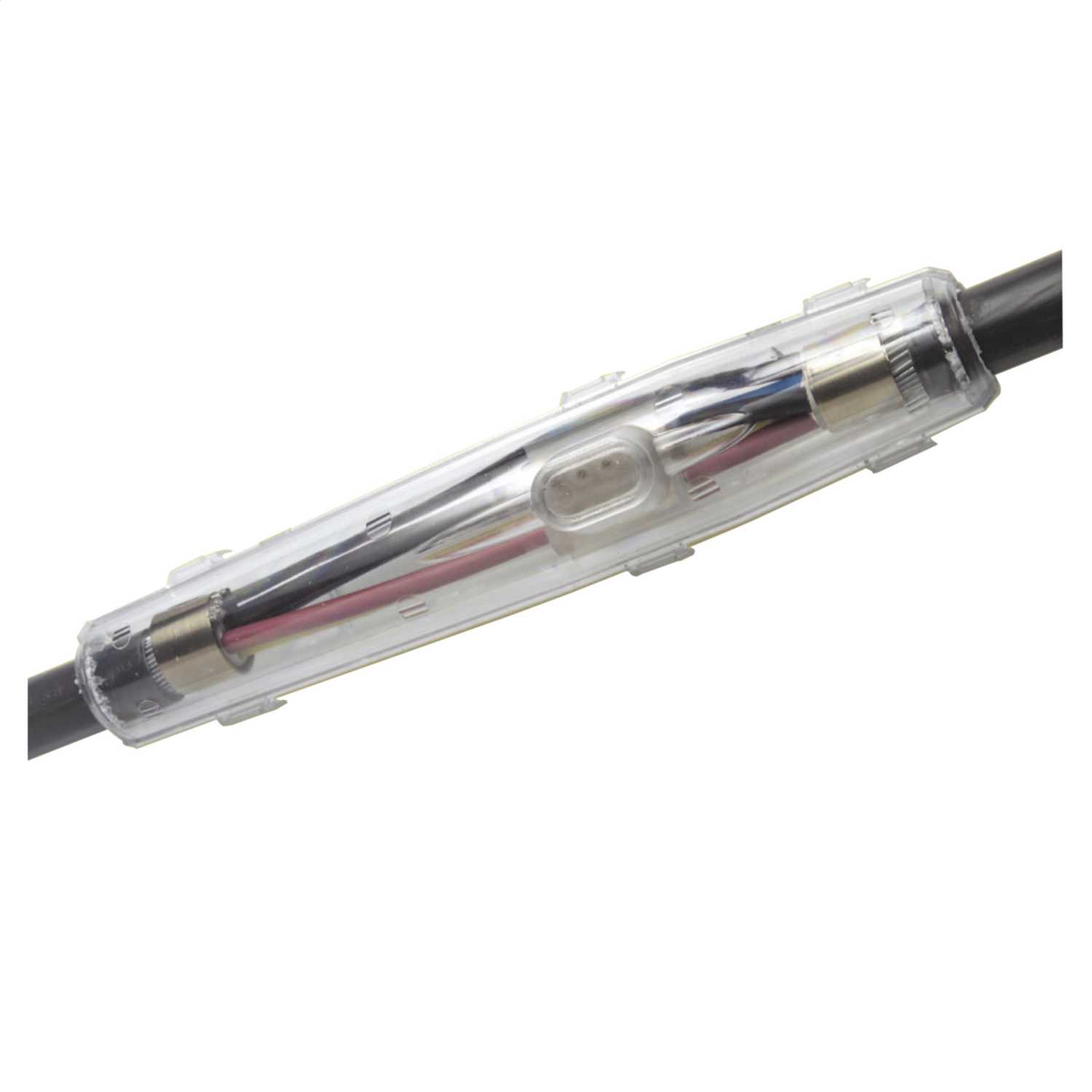

| Polycarbonate construction which results in a crystal clear UV resistant moulding. Very high-impact strength, even at low temperatures, flame retardant material. Earth bonding kit and mechanical connectors included. Supplied with easy to use 2 part resin system. Pre-filled packs ensure the correct mix ratio every time. Suitable for voltages up to 3.6kV. Installation instructions with clear drawings allow for quick and easy install. 1 year guarantee refers to resin pack supplied. | |
| Available Options |

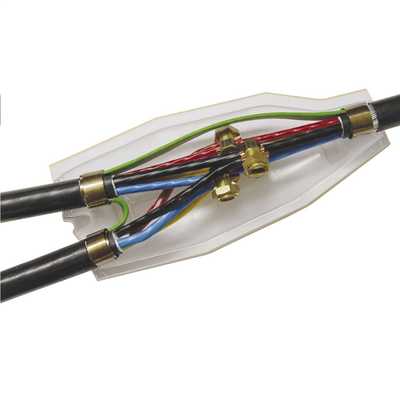

Alternative Sizes Available Branch Joint Options Available Additional Resin Packs Available |
|---|---|
| Cable Size | 50mm² |
| Cable Size Range | 25 - 50mm² |
| Diameter | 66mm |
| Dimensions | (L)370 mm x (Dia)66 mm |
| Guarantee | 1 Year |
| Kit Contents | Polycarbonate Shell; Resin Pack; Earth Bonding Kit; Mechanical Connectors; Safety Gloves; Sealing Tape |
| Length | 370mm |
| Logistics Partner | NONE |
| Material | Polycarbonate |
| Maximum Cable Diameter | 36mm |
| Packaging Types | Kit |
| Similar Stock | No |
| Standards | IEC 50393-11:2006 |
| Suitable For | Cables up to 4 Core 50mm² |
| Unspsc V13 | 39121452 |
| Unspsc V18 | 39121452 |
| Unspsc V22 | 39121452 |
| Unspsc V24 | 39121452 |
| Voltage Rating | 3600V |
| Weight | 2.287kg |
