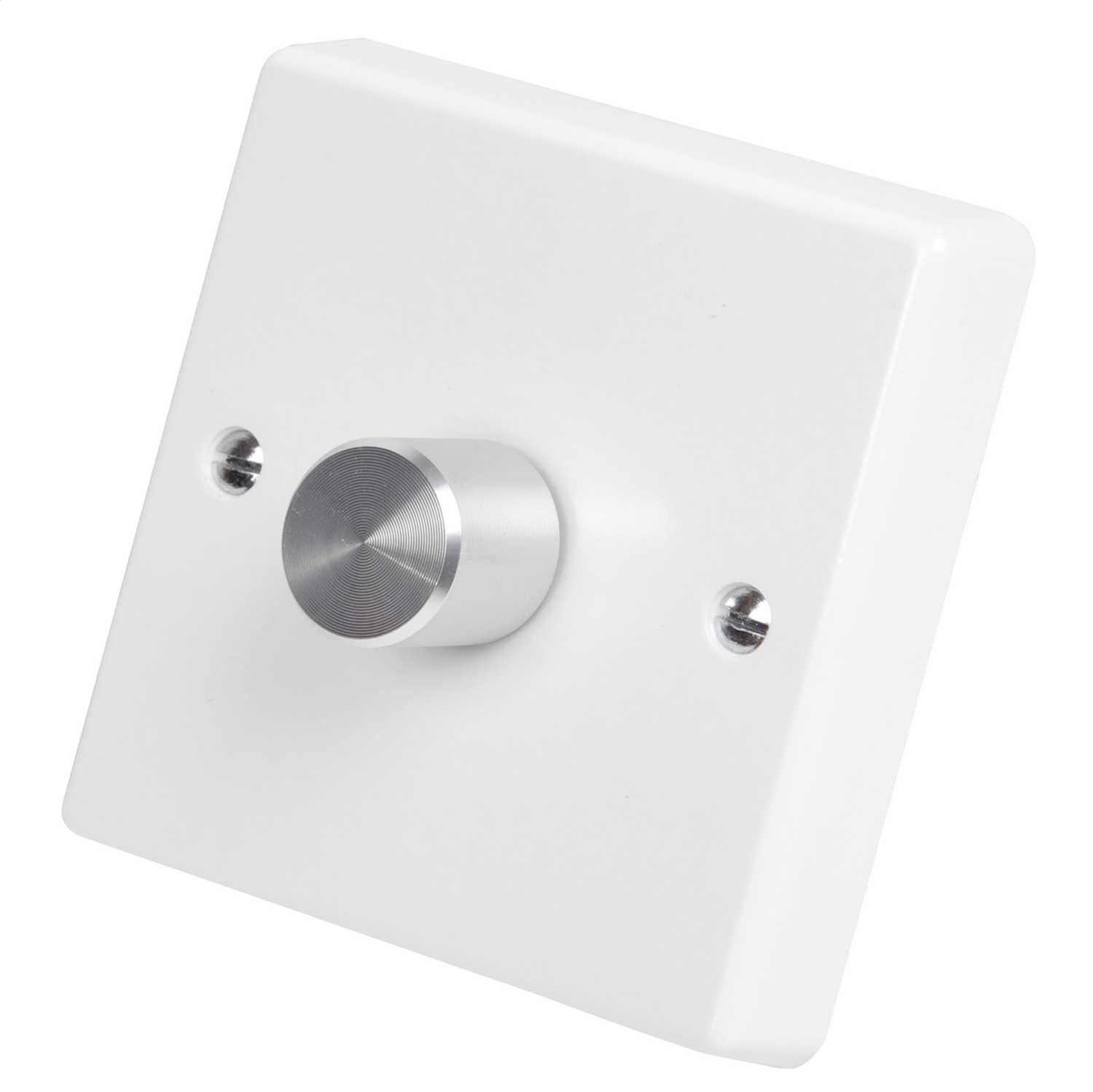

Stock #:
0338-0560
Catalogue #:
HQ9A
| Faceplate depth: 11mm. Recommended back box depth: 25mm. Maximum load rating: Halogen; 750W. Intended applications: Domestic lighting circuits. | |
| Available Options | Alternative Finishes Available |
|---|---|
| Colour | White |
| Compliance | CE |
| Current Rating | 3.3A |
| Depth | 50mm |
| Dimensions | (H)85 mm x (W)85 mm x (D)50 mm |
| Finish | Glossy |
| Fixing Centres | 60.3mm |
| Guarantee | 10 Years |
| Height | 85mm |
| Insert Colours | Brushed Chrome |
| Lamp Type | Halogen |
| Logistics Partner | NONE |
| Material | Plastic |
| Mounting | Wall |
| Mounting Depth | 25mm |
| Number Of Gangs | 1 |
| Number Of Terminals | 3 |
| Number Of Ways | 2 |
| Obsolete Iso | 2017-04-21 |
| Operation Type | Push On / Off Rotary |
| Packaging Types | Pack |
| Power Rating | 1000W |
| Product Range | V-Dim |
| Similar Stock | No |
| Standards | BS 5518 |
| Terminal Capacity Live Neutral | 3 x 1.5mm² |
| Unspsc V13 | 39122206 |
| Unspsc V18 | 39122206 |
| Unspsc V22 | 39122206 |
| Voltage Rating | 250V |
| Weight | 0.138kg |
| Width | 85mm |
