Stock #:
0943-1407
Catalogue #:
CM5+C
| Strong transparent shells. Fully waterproof, no resin leakage. Cable spacers included. Complete kit, sealing tape, sandpaper and protective gloves also included. Installation instructions with clear drawings. Quick and easy installation. Connectors and earthing kit included. | |
| Available Options |
Straight and Branch Joints Available Additional Resin Packs Available |
|---|---|
| Cable Size | 185mm² |
| Cable Size Range | 150 - 185mm² |
| Diameter | 140mm |
| Dimensions | (L)700 mm x (Dia)140 mm |
| Guarantee | 1 Year |

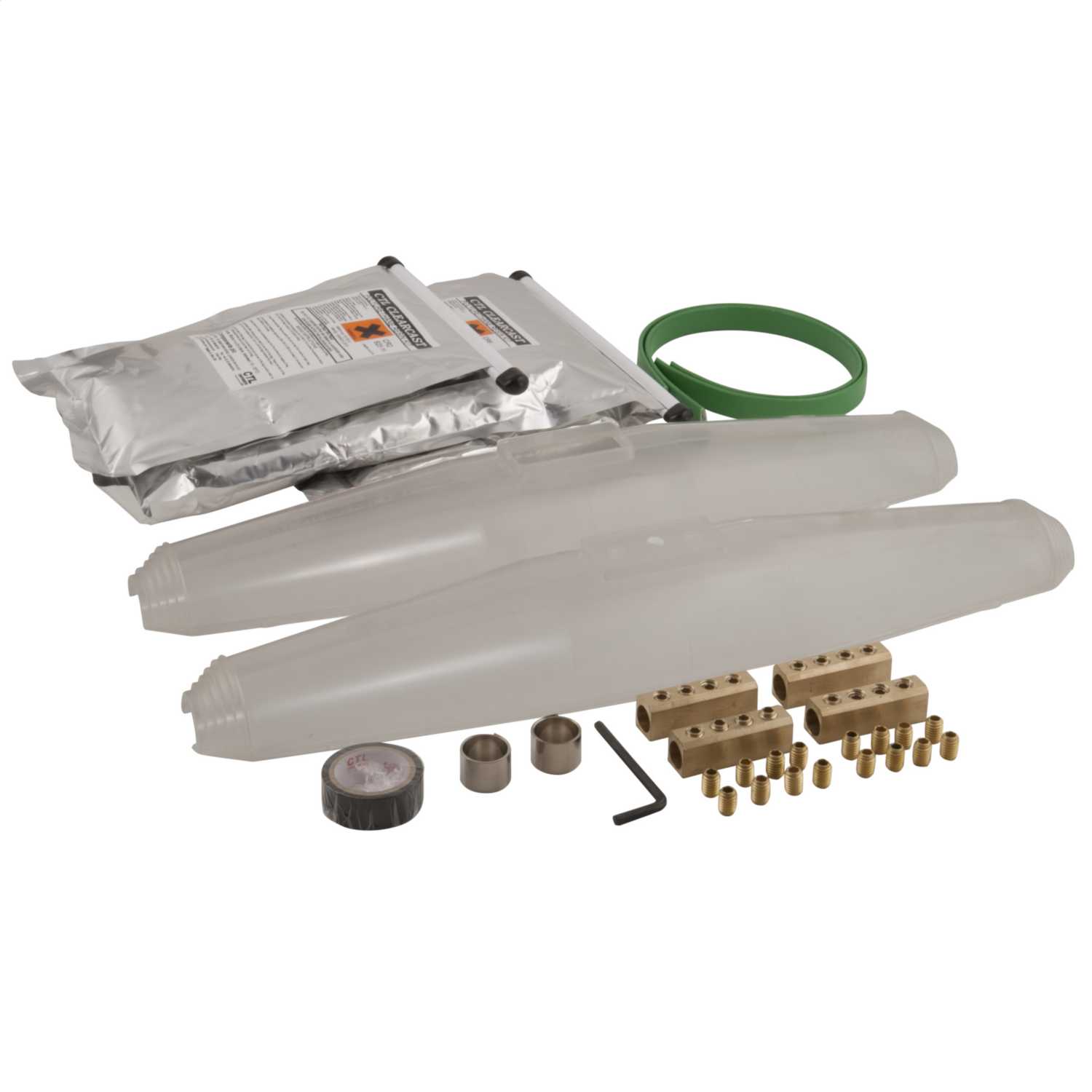

| Kit Contents | Polycarbonate Shell; Resin Pack; Cable Spacers; Mechanical Connectors; Earthing Kit; Sealing Tape; Sandpaper; Protective Gloves |
| Length | 700mm |
| Logistics Partner | NONE |
| Material | Polycarbonate |
| Maximum Cable Diameter | 68mm |
| Packaging Types | Kit |
| Product Range | Straight Cable Joining Kits |
| Similar Stock | No |
| Standards | IEC 50393-11:2006 |
| Suitable For | 150mm² [4 Core], 185mm² [2, 3, 4 Core] |
| Unspsc V13 | 39121452 |
| Unspsc V18 | 39121452 |
| Unspsc V22 | 39121452 |
| Unspsc V24 | 39121452 |
| Voltage Rating | 1000V |
| Weight | 8.6kg |
