Stock #:
0070-2697
Catalogue #:
THB110

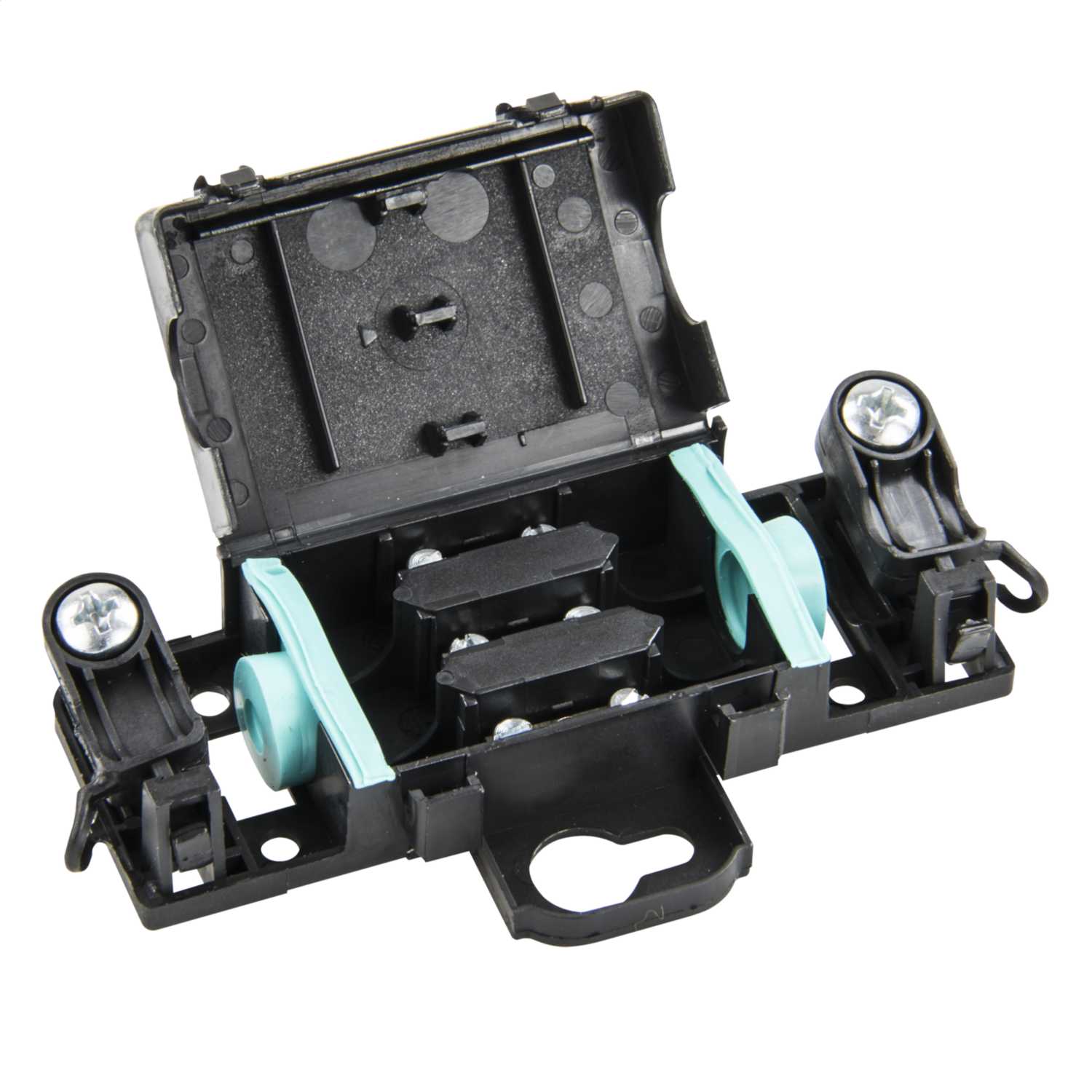

| 2 cable entries. 3 poles with double cable clamp. Temperature range of -40°C to +125°C. | |
| Cable Entry | 2 |
|---|---|
| Cable Size | 2.5mm² |
| Compliance | CE, RoHS, ENEC |
| Conductor Size | 2.5mm² |
| Current Rating | 24A |
| Dimensions | (L)76 mm x (H)13 mm x (W)39 mm |
| Guarantee | 1 Year |
| Height | 13mm |
| IP Rating | IP44 |
| Length | 76mm |
| Logistics Partner | NONE |
| Material | PA66 |
| Maximum Cable Diameter | 9mm |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number Of Poles | 3 Pole |
| Number Of Terminals | 3 |
| Packaging Types | Each |
| Product Range | TeeBox |
| Similar Stock | No |
| Terminal Type | Screw |
| Unspsc V13 | 39121332 |
| Unspsc V18 | 39121332 |
| Unspsc V22 | 39121332 |
| Unspsc V24 | 39121332 |
| Voltage Rating | 450V |
| Weight | 0.018kg |
| Width | 39mm |
