Stock #:
2785-9519
Catalogue #:
F4PINLINEC5P

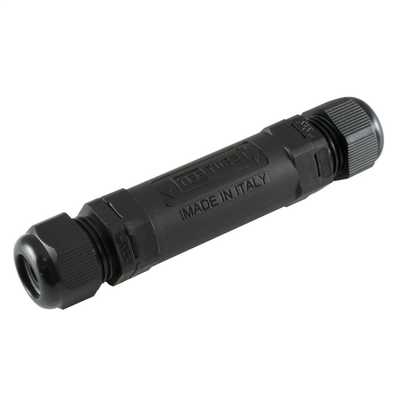

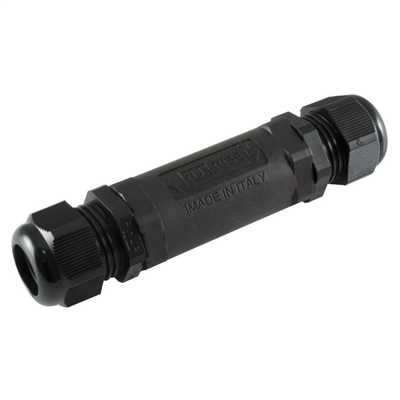

| Suitable for cables with a diameter between 10-14mm. Suitable for domestic and commercial applications, such as outside lighting, heating and water pumps. | |
| Cable Entry | 2 x Compression Gland Entries |
|---|---|
| Cable Size Range | 10-14mm² |
| Colour | Black |
| Compliance | UKCA, CE |
| Current Rating | 16A |
| Diameter | 30.4mm |
| Dimensions | (L)100 mm x (Dia)30.4 mm |
| Guarantee | 1 Year |
| IP Rating | IP68 |
| Length | 100mm |
| Logistics Partner | NONE |
| Material | PA66 Fire-retardant |
| Maximum Cable Diameter | 14mm |
| Maximum Operating Temperature | 80°C |
| Minimum Cable Diameter | 10mm |
| Minimum Operating Temperature | -20°C |
| Number Of Poles | 5 Pole |
| Number Of Terminals | 5 |
| Packaging Types | Each |
| Similar Stock | No |
| Standards | IEC 60998-1/-2-2 |
| Suitable For | Round Cable |
| Terminal Type | Lever |
| Type | Weatherproof Cable Connector |
| Unspsc V13 | 39121332 |
| Unspsc V18 | 39121332 |
| Unspsc V22 | 39121332 |
| Voltage Rating | 450V |
